SD5VFF

Original price $3,295.00 - Original price $3,295.00
Original price
$3,295.00
$3,295.00 - $3,295.00
Current price $3,295.00

The uber-versatile SD5VFF industrial floor fan has got what you need for major airflow on the move. It's packing a 1.5 HP Heavy Industry inverter motor with knob-controlled variable speed--not to mention convenient locking castors to make sure it stays put. Certified OSHA compliant guarding takes safety to the max, plus it's built for those sweltering work zones up to 135 degrees F.

Mix 'n' match with the 5 Series Fans: Krupp Stainless Steel Blades fanning up to 60' wide, or the Red Composite Lineal Distance Blades spinning a high-velocity long-distance air pattern up to 120' long. Same low-low price, but the Red Lineal Blades make a bit more noise – cranking up the RPMs!

Product Catalog Sheet

Specifications

Weight 265 lbs

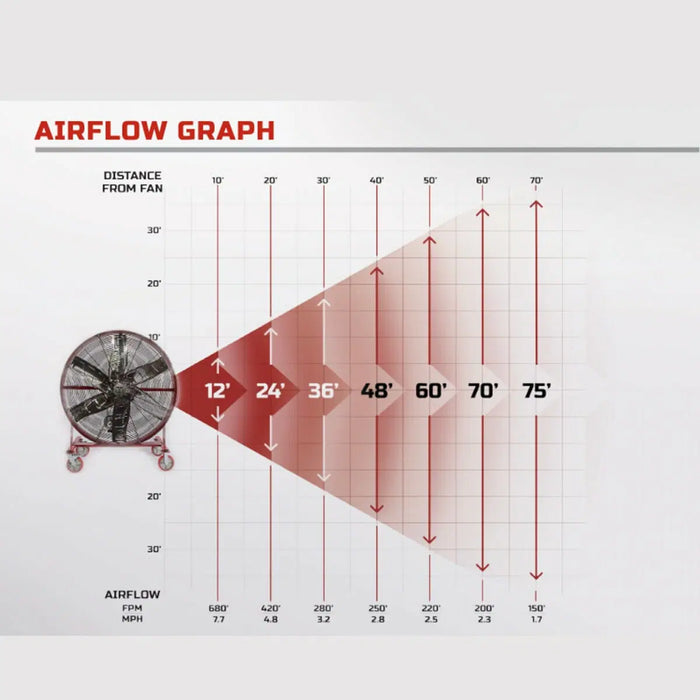

Airflow

43,000 CFM

Diameter

59" Diameter

Motor

1.5 HP / Inverter motor / Class F Insulation / TEFC Industry Duty / UL

Controls

Variable Speed VFD 115/230VAC (115 Volt input standard)

Chassis

4 heavy-duty casters, 2 fixed, 2 locking and swivel

Power Cord

12’ input lead, 3 wire, 16 gauge, SJOOW, 3 prong plug, UL Listed

Blades

6 Krupp Stainless Steel, balanced, grooved for noise reduction and rigidity

Shroud

Steel formed, powder coated red

Noise Level

43.4 DB (taken 20’ from fan center)

Drive

Belt drive, cast motor pulley, high-performance kevlar belt

Bladeset Option

Stainless Steel, Red Lineal Distance
