Auto Shop Exhaust Systems for Ventilation, Safety, and Code Compliance
Managing an auto shop means more than just fixing engines—it means protecting your team, your customers, and your business. A major part of that responsibility? Installing the right exhaust system. Working in a compact garage or a large-scale service center requires proper ventilation—not just for comfort, but to meet legal and safety standards.
In this guide, we’ll explore the types of fans and ventilation systems that help auto shops stay compliant with safety regulations, improve air quality, and create a safer work environment.
Why Auto Shop Exhaust Systems Matter
Auto shops and garages deal with dangerous fumes and pollutants every day, from vehicle emissions to airborne particulates. Without the right exhaust system in place, these hazards can quickly build up in enclosed spaces, posing health risks and violating local codes and OSHA standards.
Properly designed auto shop exhaust systems are crucial for:
-
Removing carbon monoxide and other harmful gases
-
Reducing airborne pollutants and dust
-
Maintaining comfortable indoor air quality
-
Complying with state and federal ventilation codes
What the Codes Require
Local building and safety codes vary, but most U.S. states follow OSHA guidelines and ASHRAE standards for workplace ventilation. A few key requirements include:
-
Mechanical Ventilation – Enclosed repair bays typically require mechanical exhaust systems.
-
Carbon Monoxide Control – Direct capture or ducting systems may be necessary for emissions control.
-
Air Changes Per Hour (ACH) – Many garages require 6 to 10 ACH to meet code.
-
Make-Up Air Systems – In larger shops, exhaust systems may need make-up air to balance pressure.
Key Types of Fans for Auto Shop Ventilation
From full auto shop exhaust systems to general airflow enhancements, these are the most effective fan types to consider for your space:
Ceiling Fans for Garage Air Circulation
While not true exhaust fans, HVLS ceiling fans keep air moving, helping to eliminate stagnant zones and reduce heat buildup. Look for reversible motors, wet ratings, and low-noise operation.
Exhaust Fans for Garage Ceilings
These fans extract contaminated air and vent it outside. Ideal for targeted workspaces or emission zones, they come in various CFM ratings and mount cleanly in ceilings.
Wall-Mounted Exhaust Fans
Mounted on exterior walls, these fans offer quick installation and effective air removal. Features like backdraft shutters and weather-resistant housings are important for shop environments.
Vehicle Exhaust Extraction Systems
These systems connect directly to tailpipes and vent exhaust outside through ducts or hose reels, making them a key part of emissions control—especially in enclosed garages and inspection stations.
Drum Fans for Mobile Airflow
Drum fans are powerful, portable options ideal for spot cooling or temporary airflow in tight or high-traffic areas. Their wheeled design makes them easy to reposition, and they’re especially useful near service bays, welding stations, or areas where ceiling or wall mounts aren’t practical.
TBC Supply Featured Products & Solutions
Explore our top-performing fans designed to improve air quality, temperature control, and code compliance in auto shops and garages.

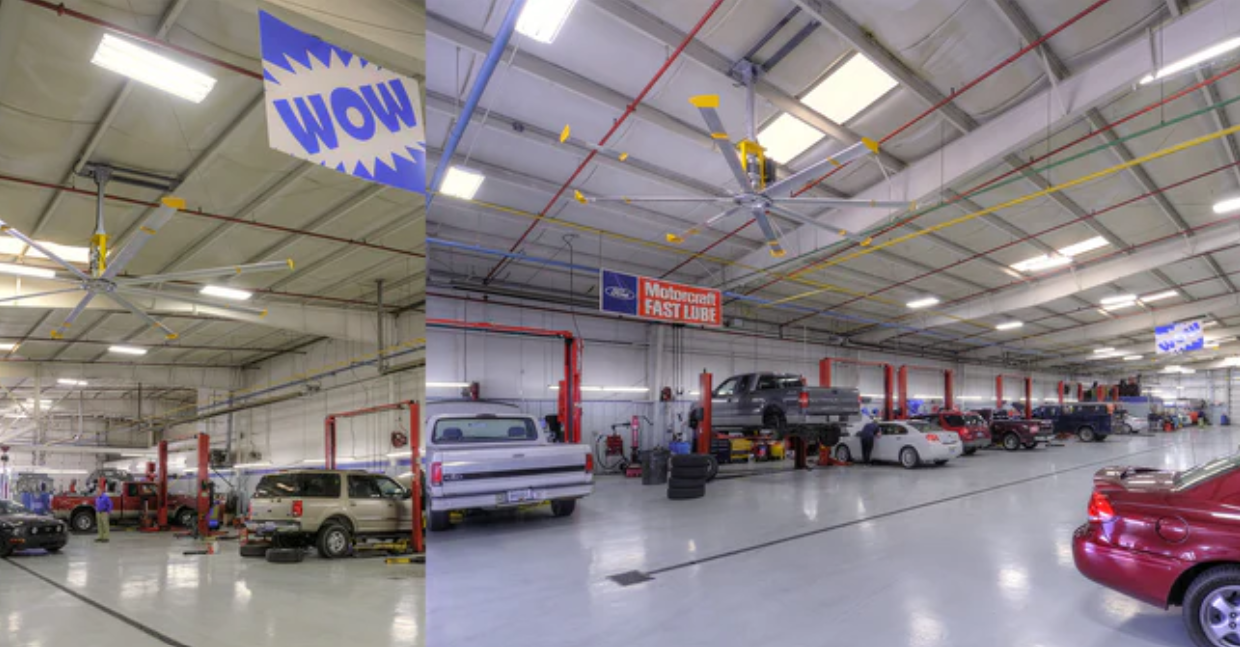

1. Titan HVLS Fan by Hunter Industrial
For shops that demand serious airflow, the Titan HVLS Fan by Hunter Industrial delivers unmatched performance. Engineered specifically for large industrial environments, this high-volume, low-speed ceiling fan circulates massive amounts of air quietly and efficiently—making it ideal for cooling service bays, auto shops, and garages.
Key Features:
-
Available in 14’ to 24’ Diameters – Customizable to fit your facility size.
-
Direct-Drive Motor – Ensures quiet operation and long-lasting performance.
-
Built-In Safety Systems – Includes redundant safety features for peace of mind.
-
Multiple Mounting Options – Installs easily on I-beams, purlins, Unistrut, or glulam beams.
-
Smart Control Capabilities – Compatible with BMS integration over BACnet IP/MSTP and Modbus RTU.
Looking to cut down on heat and boost airflow in your automotive facility? The Titan HVLS is a powerhouse solution built to perform as hard as your team.
2. SD4VFF by Super Duty Fans
For shop owners who need serious airflow with unmatched mobility, the SD4VFF from Super Duty Fans is a game-changer. This 48″ floor fan packs a punch with an impressive 31,000 CFM and whisper-quiet belt drive, making it ideal for high-demand workspaces. Its slim 28″ profile fits through standard doors, while a tiltable frame and locking wheels give you flexible, directional cooling wherever you need it.
Key Specs:
-
Airflow: 31,000 CFM
-
Motor: 1.5 HP Inverter Motor TEFC
-
Diameter: 48″
-
Control: Digital VFD Controller with Variable Speed
-
Mobility: 4 wheels (2 locking/swivel)
-
Power: 110V with 10′ power cord
-
Tilt Range: 30° up or down
-
Drive: Quiet belt drive system
It’s the ultimate solution when you need portable, efficient, and powerful ventilation on demand.
3. SD5V by Super Duty Fans
The SD5V ceiling-mounted industrial fan is built for serious airflow and all-season performance. With a massive 43,000 CFM output and ultra-durable stainless steel or lineal distance blades, this fan is ideal for large garages, service bays, and automotive production lines. It includes a variable speed VFD controller and a quad-strap mounting system for reliable overhead installation. For wide coverage or focused airflow, the SD5V delivers powerful performance with minimal noise.
Specifications
-
Airflow: 43,000 CFM
-
Motor: 1.5 HP / 120V / Inverter Motor / TEFC / Class F Insulation / UL
-
Diameter: 59"
-
Controls: Variable Speed VFD 115/230VAC (115V input standard)
-
Mounting System: Quad-Strap System – 4 web straps (48"), 4300 lb. capacity each
-
Blades: 6 Krupp stainless steel (grooved for rigidity) or Red Lineal Distance blades
-
Shroud: Steel, powder-coated in gloss red
-
Noise Level: 43.4 dB (measured 20′ from fan center, hung 20′ high)
-
Drive: Belt drive with cast pulley and Kevlar belt
-
Mounting Height: Must hang 10′+ from the ground and 3′ from ceiling; ideal height: 18–30′
Upgrade Your Auto Shop with TBC Supply
At TBC Supply, we carry a range of ventilation and circulation fans tailored to the needs of auto shops, garages, and industrial spaces. Whether you're outfitting a single bay or an entire facility, our fan experts can help you select the best system for safety, performance, and code compliance.
Shop now or contact our team to start designing your custom ventilation solution.
